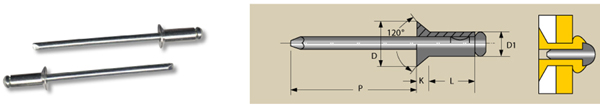

 ALUMINIUM/STEEL
OPEN TYPE CSK HEAD |
|
|
|
MATERIAL
BODY : 5050 Alu.Alloy
MANDREL : Steel |
FINISH
BODY : Polished
MANDREL : Zinc Plated |
| |
D1
NOM. |
DRILL NO. &HOLE
SIZE |
ART. CODE |
GRIP RANGE |
L (MAX) |
D
NOM. |
K
MAX |
P
MIN. |
SHEAR
LBS |
TENSILE
LBS |
| INCH |
MM |
INCH |
MM |
3/32"
2.4mm |
#41
2.5-2.6 |
1-AS32 C |
0.079-0.125 |
2.0-3.2 |
0.250
|
6.4 |
0.174"
4.4 |
0.027"
0.69 |
1.00"
25.4 |
70
310N |
80
360N |
| 1-AS34 C |
0.126-0.250 |
3.2-6.4 |
0.375
|
9.5 |
| 1-AS36 C |
0.251-0.375 |
6.4-9.5 |
0.500
|
12.7 |
1/8"
3.2mm |
#30
3.3-3.4
|
1-AS42
C |
0.092-0.125 |
2.3-3.2 |
0.275
|
7.0 |
0.220"
5.6 |
0.031"
0.79 |
1.06"
27 |
120
530N |
150
670N |
| 1-AS43
C |
0.126-0.187 |
3.2-4.8 |
0.337
|
8.6 |
| 1-AS44
C |
0.188-0.250 |
4.8-6.4 |
0.400
|
10.2
|
| 1-AS45
C |
0.251-0.312 |
6.4-7.9 |
0.462
|
11.7
|
| 1-AS46
C |
0.313-0.375 |
7.9-9.5 |
0.525
|
13.3
|
| 1-AS48
C |
0.376-0.500 |
9.5-12.7 |
0.650
|
16.5
|
5/32"
4.0mm |
#20
4.1-4.2 |
1-AS53 C |
0.120-0.187 |
3.0-4.8 |
0.362
|
9.2 |
0.281"
7.1 |
0.040"
1.02 |
1.06"
27 |
190
850N |
230
1020N |
| 1-AS54 C |
0.188-0.250 |
4.8-6.4 |
0.425
|
10.8 |
| 1-AS56 C |
0.251-0.375 |
6.4-9.5 |
0.550
|
14.0 |
| 1-AS58C |
0.376-0.500 |
9.5-12.7 |
0.675 |
17.1 |
3/16"
4.8mm |
#11
4.9-5.0 |
1-AS63
C |
0.151-0.187 |
3.8-4.8 |
0.387 |
9.8 |
0.348"
8.8 |
0.050"
1.27 |
1.06"
27 |
260
1160N |
320
1430N |
| 1-AS64
C |
0.188-0.250 |
4.8-6.4 |
0.450 |
11.4 |
| 1-AS66
C |
0.251-0.375 |
6.4-9.5 |
0.575 |
14.6 |
| 1-AS68
C |
0.376-0.500 |
9.5-12.7 |
0.700 |
17.8 |
| 1-AS610
C |
0.501-0.625 |
12.7-15.9 |
0.825 |
21.0 |
1/4"
6.4mm |
F
6.5-6.6 |
1-AS84 C |
0.125-0.250 |
3.2-6.4 |
0.500 |
12.7 |
0.470"
11.9 |
0.060"
1.52 |
1.25"
32 |
460
2050N |
560
2500N |
| 1-AS86 C |
0.251-0.375 |
6.4-9.5 |
0.625 |
15.9 |
| 1-AS88 C |
0.376-0.500 |
9.5-12.7 |
0.750 |
19.1 |
|
|
| |
|
|
