·SS71
·AA71
·BB71
·SSC71
·SSN
·AAN
·BBN
·SSNC·Monel 400/钢开口型
·Monel 400/不锈钢








铝/钢大帽封闭型ASFLF
　

材质
铆体:  5056  Alu.Alloy
钉芯:  Steel		 表面颜色
铆体:   Polished
钉芯:   Phosphated
　

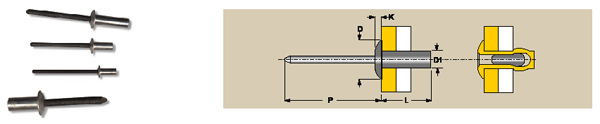

D1
NOM. 		DRILL NO.
&HOLE SIZE 		ART.CODE GRIP RANGE L(MAX) D
NOM. 		K
MAX. 		P
MIN. 		SHEAR
LBS 		TENSILE
LBS
INCH MM INCH MM
1/8"
3.2mm 		#30
3.3-3.4 		ASF41LF 0.020-0.062 0.5-1.6 0.297 7.5 0.375"
9.5		 0.082"
2.1		 1.06"
27   		240
1070N 		280
1250N
ASF42LF 0.063-0.125 1.6-3.2 0.360 9.1
ASF43 LF 0.126-0.187 3.2-4.8 0.422 10.7
ASF44LF 0.188-0.250 4.8-6.4 0.485 12.3
ASF45LF 0.251-0.312 6.4-7.9 0.547 13.9
ASF46LF 0.313-0.375 7.9-9.5 0.610 15.5
ASF48LF 0.376-0.500 9.5-12.7 0.735 18.7
5/32"
4.0mm 		#20
4.1-4.2 		ASF52LF 0.020-0.125 0.5-3.2 0.375 9.5 0.468"
12.0		 0.102"
2.6		 1.06"
27   		350
1560N 		480
2140N
ASF53LF 0.126-0.187 3.2-4.8 0.437 11.1
ASF54LF 0.188-0.250 4.8-6.4 0.500 12.7
ASF55LF 0.251-0.312 6.4-7.9 0.562 14.3
ASF56LF 0.313-0.375 7.9-9.5 0.625 15.9
ASF58LF 0.376-0.500 9.5-12.7 0.750 19.1
3/16"
4.8mm 		#11
4.9-5.0 		ASF62 LF 0.020-0.125 0.5-3.2 0.406 10.3 0.625"
16.0		 0.110"
2.8		 1.06"
27 		500
2230N 		690
3070N
ASF63LF 0.126-0.187 3.2-4.8 0.468 11.9
ASF64LF 0.188-0.250 4.8-6.4 0.531 13.5
ASF66LF 0.251-0.375 6.4-9.5 0.656 16.7
ASF68LF 0.376-0.500 9.5-12.7 0.781 19.8
ASF610LF 0.501-0.625 12.7-15.9 0.906 23.0
ASF612LF 0.626-0.750 15.9-19.1 1.026 26.1
