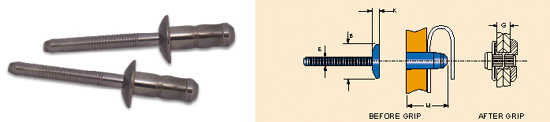

HEM-FIX BB21-Series
|
|
|
MATERIAL
BODY : 300 Series Stainless Steel
MANDREL: 300 Series Stainless Steel |
FINISH
BODY: Natural
MANDREL: Natural |
|
Size |
Drill |
Part
No. |
M
|
Grip
Range
|
B
|
K
|
E |
Shear |
Tensile
|
max
|
max
|
max
|
max
|
KN
|
KN
|
6.4
(1/4 ") |
 |
BB21-0812 |
13.7 |
1.50-3.50 |
13.4 |
2.7 |
3.9 |
11.0 |
10.0 |
|
|
|
|
|
|
|
|
BB21-0813 |
15.0 |
2.80-4.80 |
13.4 |
2.7 |
3.9 |
11.5 |
10.0 |
|
|
|
|
|
|
|
|
BB21-0814 |
15.6 |
3.35-5.35 |
13.4 |
2.7 |
3.9 |
12.0 |
10.0 |
|
|
|
|
|
|
|
|
BB21-0815 |
17.0 |
4.80-6.80 |
13.4 |
2.7 |
3.9 |
12.5 |
10.0 |
|
|
|
|
|
|
|
|
BB21-0817 |
19.0 |
6.80-8.80 |
13.4 |
2.7 |
3.9 |
13.0 |
10.0 |
|
|
|
|
|
|
|
|
BB21-0818 |
19.7 |
7.50-9.50 |
13.4 |
2.7 |
3.9 |
13.5 |
10.0 |
|
|
|
|
|
|
|
|
BB21-0819 |
21.0 |
8.80-10.80 |
13.4 |
2.7 |
3.9 |
14 |
10.0 |
|
|
|
|
|
|
|
|
BB21-0821 |
23.0 |
10.80-12.80 |
13.4 |
2.7 |
3.9 |
15 |
10.0 |
|
|
|
|
|
|
|
|
|
|
|
