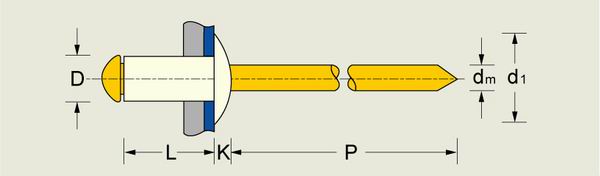

| D |
Art. Code |
L
[+1/-0.2] |
Grip Range |
d1 |
K |
Drill
Φ |
P
Min. |
dm
Ref. |
Shear
N |
Tensile
N |
3.0
+0.08
-0.10 |
CS 3006
CS 3008
CS 3010
CS 3012 |
6.0
8.0
10.0
12.0 |
1.0-3.0
3.0-5.0
5.0-7.0
7.0-9.0 |
6.5
+0.0
-0.7 |
0.80
±0.2 |
3.1 |
27 |
1.8 |
700 |
800 |
3.2
+0.08
-0.10 |
CS 3206
CS 3208
CS 3210
CS 3212 |
6.0
8.0
10.0
12.0 |
1.0-3.0
3.0-5.0
5.0-7.0
7.0-9.0 |
6.5
+0.0
-0.7 |
0.80
±0.3 |
3.3 |
27 |
1.8 |
800 |
900 |
4.0
+0.08
-0.15 |
CS 4006
CS 4008
CS 4010
CS 4012
CS 4014
CS 4016 |
6.0
8.0
10.0
12.0
14.0
16.0 |
1.0-2.5
2.5-4.5
4.5-6.5
6.5-8.5
8.5-10.0
10.0-12.5 |
8.0
+0.0
-1.0 |
1.0
±0.4 |
4.1 |
27 |
2.2 |
1000 |
1500 |
4.8
+0.08
-0.15 |
CS 4808
CS 4810
CS 4812
CS 4814
CS 4816
CS 4818
CS 4820 |
8.0
10.0
12.0
14.0
16.0
18.0
20.0 |
2.5-4.0
4.0-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-14.0
14.0-16.0 |
9.5
+0.0
-1.0 |
1.1
±0.4 |
4.9 |
27 |
27 |
1500 |
2000 |
