.jpg) |
|

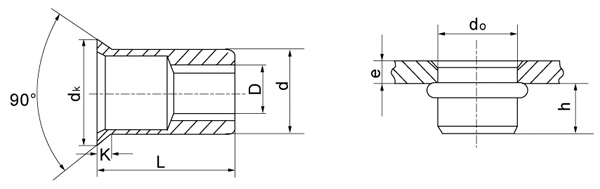

| SIZE |
D |
Grip Range
e |
h
Ref. |
d0
+0.15
-0.05 |
d
+0.03
-0.20 |
dk
±0.30 |
K
±0.20 |
L
±0.30 |
| CTR-M3 |
M3 |
1.6-3.5 |
4.5 |
5 |
5 |
7 |
0.8 |
8.8 |
| CTR-M4 |
M4 |
1.6-3.5 |
6.0 |
6 |
6 |
9 |
0.8 |
10.8 |
| CTR-M5 |
M5 |
1.6-4.0 |
8.5 |
7 |
7 |
10 |
1.0 |
13.0 |
| CTR-M6 |
M6 |
1.6-4.5 |
9.0 |
9 |
9 |
13 |
1.5 |
15.0 |
| CTR-M8 |
M8 |
1.6-5.0 |
10.0 |
11 |
11 |
15 |
1.5 |
18.0 |
| CTR-M10 |
M10 |
1.6-5.0 |
11.5 |
13 |
13 |
17 |
1.8 |
20.3 |
| CTR-M12 |
M12 |
1.6-5.0 |
14.5 |
15 |
15 |
19 |
1.8 |
24.3 |
|
|
| |
|
|
|
