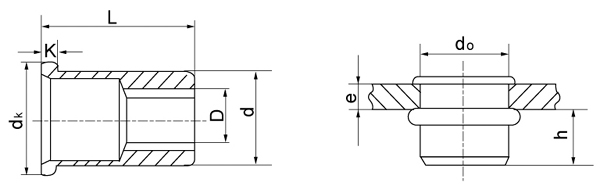

| SIZE |
D |
Grip Range
e |
h
Ref. |
d0
+0.15
-0.05 |
d
+0.03
-0.20 |
dk
±0.30 |
K
±0.20 |
L
±0.30 |
| PTR-M3 |
M3R |
M3 |
0.5-2.0 |
4.5 |
5 |
5 |
7 |
0.8 |
8.8 |
| PTR-M4 |
M4R |
M4 |
0.5-2.0 |
6.5 |
6 |
6 |
9 |
0.8 |
10.8 |
| PTR-M5 |
M5R |
M5 |
0.5-2.5 |
8.0 |
7 |
7 |
10 |
1.0 |
13.0 |
| PTR-M6 |
M6R |
M6 |
0.5-3.0 |
9.0 |
9 |
9 |
13 |
1.5 |
15.0 |
| PTR-M8 |
M8R |
M8 |
0.5-3.5 |
11.5 |
11 |
11 |
15 |
1.5 |
18. |
| PTR-M10 |
M10R |
M10 |
0.5-3.5 |
12.5 |
13 |
13 |
17 |
1.8 |
20.3 |
| PTR-M12 |
M12R |
M12 |
0.5-3.5 |
15.5 |
15 |
15 |
19 |
1.8 |
24.3 |
|
|
| |
|
|
|
