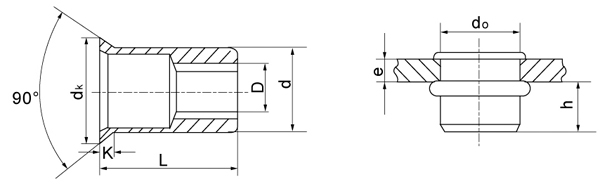

| SIZE |
D |
Grip Range
e |
h
Ref. |
d0
+0.15
-0.05 |
d
+0.03
-0.20 |
dk
±0.30 |
K
±0.20 |
L
±0.30 |
| XCT-R-M3 |
M3 |
0.5-2.0 |
5.0 |
5 |
5 |
5.50 |
0.35 |
8.5 |
| XCT-R-M4 |
M4 |
0.5-2.0 |
6.5 |
6 |
6 |
6.75 |
0.50 |
10.0 |
| XCT-R-M5 |
M5 |
0.5-2.5 |
8.0 |
7 |
7 |
8.00 |
0.60 |
12.0 |
| XCT-R-M6 |
M6 |
0.5-3.0 |
9.5 |
9 |
9 |
10.00 |
0.60 |
14.5 |
| XCT-R-M8 |
M8 |
0.5-3.5 |
10.5 |
11 |
11 |
12.30 |
0.60 |
16.5 |
| XCT-R-M10 |
M10 |
0.5-3.5 |
13.0 |
13 |
13 |
14.50 |
0.85 |
19.0 |
| XCT-R-M12 |
M12 |
0.5-3.5 |
16.0 |
15 |
15 |
16.50 |
0.85 |
22.5 |
|
|
| |
|
|
|
