材质
铆体: 5056 Alu.Alloy
钉芯: Steel |
表面颜色
铆体:
Polished
钉芯: Zinc
Plated |
| |

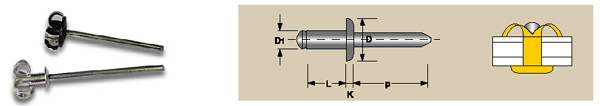

| D1 NOM. |
HOLE SIZE |
ART.CODE |
GRIP RANGE |
L(MAX) |
D
NOM. |
K
MAX. |
P
MIN. |
SHEAR
LBS |
TENSILE
LBS |
| INCH |
MM |
INCH |
MM |
1/8"
3.2mm |
0.136"
3.4-3.5 |
ASP43 |
0.059-0.187 |
1.5-4.8 |
0.406 |
10.3 |
0.250"
6.4 |
0.040"
1.02 |
1.06"
27 |
180
800N |
160
720N |
| ASP44 |
0.188-0.250 |
4.8-6.4 |
0.469 |
11.9 |
| ASP45 |
0.251-0.312 |
6.4-7.9 |
0.528 |
13.4 |
| ASP46 |
0.313-0.375 |
7.9-9.5 |
0.591 |
15.0 |
| ASP48 |
0.376-0.500 |
9.5-12.7 |
0.717 |
18.2 |
5/32"
4.0mm |
0.167"
4.2-4.3 |
ASP53 |
0.126-0.187 |
3.2-4.8 |
0.445 |
11.3 |
0.312"
7.9 |
0.050"
1.27 |
1.06"
27 |
285
1270N |
260
1160N |
| ASP54 |
0.188-0.250 |
4.8-6.4 |
0.508 |
12.9 |
| ASP56 |
0.251-0.375 |
6.4-9.5 |
0.630 |
16.0 |
| ASP58 |
0.376-0.500 |
9.5-12.7 |
0.756 |
19.2 |
| ASP510 |
0.501-0.625 |
12.7-15.9 |
0.882 |
22.4 |
| ASP512 |
0.626-0.750 |
15.9-19.1 |
1.008 |
25.6 |
| ASP514 |
0.751-0.875 |
19.1-22.2 |
1.130 |
28.7 |
3/16"
4.8mm |
0.199"
5.1-5.2 |
ASP63 |
0.126-0.187 |
3.2-4.8 |
0.472 |
12.0 |
0.375"
9.5 |
0.060"
1.52 |
1.06"
27 |
420
1870N |
362
1610N |
| ASP64 |
0.188-0.250 |
4.8-6.4 |
0.535 |
13.6 |
| ASP66 |
0.251-0.375 |
6.4-9.5 |
0.657 |
16.7 |
| ASP68 |
0.376-0.500 |
9.5-12.7 |
0.783 |
19.9 |
| ASP610 |
0.501-0.625 |
12.7-15.9 |
0.910 |
23.1 |
| ASP612 |
0.626-0.750 |
15.9-19.1 |
1.035 |
26.3 |
| ASP614 |
0.751-0.875 |
19.1-22.2 |
1.157 |
29.4 |
| ASP616 |
0.876-1.000 |
22.2-25.4 |
1.283 |
32.6 |
| ASP618 |
1.001-1.125 |
25.4-28.6 |
1.410 |
35.8 |
|
|
| |
|
|
