材质
铆体: Stainless
Steel
钉芯: Steel |
表面颜色
铆体:
Polished
钉芯: Zinc Plated |
| |

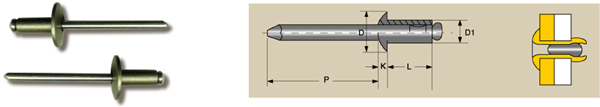

D1
NOM. |
DRILL NO. &HOLE
SIZE |
ART. CODE |
GRIP RANGE |
L (MAX) |
D
NOM. |
K
MAX |
P
MIN. |
SHEAR
LBS |
TENSILE
LBS |
| INCH |
MM |
INCH |
MM |
1/8"
3.2mm |
#30
3.3-3.4 |
BS42LF |
0.063-0.125 |
1.6-3.2 |
0.275 |
7.0 |
0.375"
9.5 |
0.065"
1.65 |
1.06"
27 |
420
1870N |
530
2360N |
| BS43LF |
0.126-0.187 |
3.2-4.8 |
0.337 |
8.6 |
| BS44LF |
0.188-0.250 |
4.8-6.4 |
0.400 |
10.2 |
| BS45LF |
0.251-0.312 |
6.4-7.9 |
0.462 |
11.7 |
| BS46LF |
0.313-0.375 |
7.9-9.5 |
0.525 |
13.3 |
| BS48LF |
0.376-0.500 |
9.5-12.7 |
0.650 |
16.5 |
5/32"
4.0mm |
#20
4.1-4.2 |
BS52LF |
0.020-0.125 |
0.5-3.2 |
0.300 |
7.6 |
0.468"
12.0 |
0.075"
1.90 |
1.06"
27 |
650
2900N |
820
3650N |
| BS53LF |
0.126-0.187 |
3.2-4.8 |
0.362 |
9.2 |
| BS54LF |
0.188-0.250 |
4.8-6.4 |
0.425 |
10.8 |
| BS56LF |
0.251-0.375 |
6.4-9.5 |
0.550 |
14.0 |
| BS58LF |
0.376-0.500 |
9.5-12.7 |
0.675 |
17.1 |
| BS510LF |
0.501-0.625 |
12.7-15.9 |
0.800 |
20.3 |
3/16"
4.8mm |
#11
4.9-5.0 |
BS62LF |
0.020-0.125 |
0.5-3.2 |
0.325 |
8.3 |
0.625"
16.0 |
0.092"
2.33 |
1.06"
27 |
950
4230N |
1200
5340N |
| BS63LF |
0.126-0.187 |
3.2-4.8 |
0.387 |
9.8 |
| BS64LF |
0.188-0.250 |
4.8-6.4 |
0.450 |
11.4 |
| BS66LF |
0.251-0.375 |
6.4-9.5 |
0.575 |
14.6 |
| BS68LF |
0.376-0.500 |
9.5-12.7 |
0.700 |
17.8 |
| BS610LF |
0.501-0.625 |
12.7-15.9 |
0.825 |
21.0 |
| BS612LF |
0.626-0.750 |
15.9-19.1 |
0.950 |
24.1 |
| BS614LF |
0.751-0.875 |
19.1-22.2 |
1.075 |
27.3 |
| BS616LF |
0.876-1.000 |
22.5-25.4 |
1.200 |
30.5 |
| BS618LF |
1.001-1.125 |
25.4-28.6 |
1.325 |
33.7 |
|
|
| |
|
|
