材质
铆体: Stainless Steel
钉芯: Stainless Steel |
表面颜色
铆体:
Polished
钉芯:
Polished |
| |

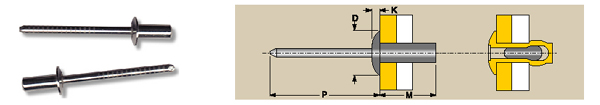

D1
NOM. |
DRILL NO.
&HOLE
SIZE |
ART.CODE |
GRIP RANGE |
L(MAX) |
D
NOM. |
K
MAX. |
P
MIN. |
SHEAR
LBS |
TENSILE
LBS |
| INCH |
MM |
INCH |
MM |
1/8"
3.2mm |
#30
3.3-3.4 |
BBF-S41 |
0.020-0.062 |
0.5-1.6 |
0.297 |
7.5 |
0.238"
6.0 |
0.050"
1.27 |
1.06"
27 |
400
1780N |
450
2000N |
| BBF-S42 |
0.063-0.125 |
1.6-3.2 |
0.360 |
9.1 |
| BBF-S43 |
0.126-0.187 |
3.2-4.8 |
0.422 |
10.7 |
| BBF-S44 |
0.188-0.250 |
4.8-6.4 |
0.485 |
12.3 |
| BBF-S45 |
0.251-0.312 |
6.4-7.9 |
0.547 |
13.9 |
| BBF-S46 |
0.313-0.375 |
7.9-9.5 |
0.610 |
15.5 |
| BBF-S48 |
0.376-0.500 |
9.5-12.7 |
0.735 |
18.7 |
5/32"
4.0mm |
#20
4.1-4.2 |
BBF-S52 |
0.020-0.125 |
0.5-3.2 |
0.375 |
9.5 |
0.312"
7.9 |
0.065"
1.65 |
1.06"
27 |
700
3120N |
800
3560N |
| BBF-S53 |
0.126-0.187 |
3.2-4.8 |
0.437 |
11.1 |
| BBF-S54 |
0.188-0.250 |
4.8-6.4 |
0.500 |
12.7 |
| BBF-S55 |
0.251-0.312 |
6.4-7.9 |
0.562 |
14.3 |
| BBF-S56 |
0.313-0.375 |
7.9-9.5 |
0.625 |
15.9 |
| BBF-S58 |
0.376-0.500 |
9.5-12.7 |
0.750 |
19.1 |
3/16"
4.8mm |
#11
4.9-5.0 |
BBF-S62 |
0.020-0.125 |
0.5-3.2 |
0.406 |
10.3 |
0.375"
9.5 |
0.080"
2.03 |
1.06"
27 |
850
3790N |
900 4010N |
| BBF-S63 |
0.126-0.187 |
3.2-4.8 |
0.468 |
11.9 |
| BBF-S64 |
0.188-0.250 |
4.8-6.4 |
0.531 |
13.5 |
| BBF-S66 |
0.251-0.375 |
6.4-9.5 |
0.656 |
16.7 |
| BBF-S68 |
0.376-0.500 |
9.5-12.7 |
0.781 |
19.8 |
| BBF-S610 |
0.501-0.625 |
12.7-15.9 |
0.906 |
23.0 |
| BBF-S612 |
0.626-0.750 |
15.9-19.1 |
1.026 |
26.1 |
1/4"
6.4mm |
F
6.5-6.6 |
BBF-S82 |
0.020-0.125 |
0.5-3.2 |
0.445 |
11.3 |
0.500"
12.7 |
0.100"
2.54 |
1.25"
32 |
1348
6000N |
1797 8000N |
| BBF-S84 |
0.126-0.250 |
3.2-6.4 |
0.570 |
14.5 |
| BBF-S86 |
0.251-0.375 |
6.4-9.5 |
0.695 |
17.7 |
| BBF-S88 |
0.376-0.500 |
9.5-12.7 |
0.820 |
20.8 |
| BBF-S810 |
0.501-0.625 |
12.7-15.9 |
0.945 |
24.0 |
| BBF-S812 |
0.626-0.750 |
15.9-19.1 |
1.070 |
27.2 |
| BBF-S814 |
0.751-0.875 |
19.1-22.2 |
1.195 |
30.4 |
| BBF-S816 |
0.876-1.000 |
22.2-25.4 |
1.320 |
33.5 |
|
|
| |
|
|
|
