材质
铆体: Copper
钉芯: Stainless
Steel |
表面颜色
铆体:
Polished
钉芯: Polished |
| |

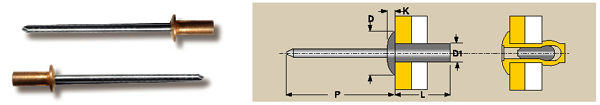

| D1 NOM. |
DRILL NO. &HOLE
SIZE |
ART.CODE |
GRIP RANGE |
L(MAX) |
D NOM. |
K
MAX. |
P MIN. |
SHEAR LBS |
TENSILE LBS |
| INCH |
MM |
INCH |
MM |
1/8"
3.2 |
#30
3.3-3.4 |
CBF41 |
0.020-0.062 |
0.5-1.6 |
0.279 |
7.5 |
0.238"
6.0 |
0.050"
1.27 |
1.06"
27 |
220
980N |
300
1340N |
| CBF42 |
0.063-0.125 |
1.6-3.2 |
0.360 |
9.1 |
| CBF43 |
0.126-0.187 |
3.2-4.8 |
0.422 |
10.7 |
| CBF44 |
0.188-0.250 |
4.8-6.4 |
0.485 |
12.3 |
| CBF45 |
0.251-0.312 |
6.4-7.9 |
0.547 |
13.9 |
| CBF46 |
0.313-0.375 |
7.9-9.5 |
0.610 |
15.5 |
| CBF48 |
0.376-0.500 |
9.5-12.7 |
0.735 |
18.7 |
5/32"
4.0 |
#20
4.1-4.2 |
CBF52 |
0.020-0.125 |
0.5-3.2 |
0.375 |
9.5 |
0.312"
7.9 |
0.065"
1.65 |
1.06"
27 |
305
1350N |
450
2000N |
| CBF53 |
0.126-0.187 |
3.2-4.8 |
0.437 |
11.1 |
| CBF54 |
0.188-0.250 |
4.8-6.4 |
0.500 |
12.7 |
| CBF55 |
0.251-0.312 |
6.4-7.9 |
0.562 |
14.3 |
| CBF56 |
0.313-0.375 |
7.9-9.5 |
0.625 |
15.9 |
| CBF58 |
0.376-0.500 |
9.5-12.7 |
0.750 |
19.1 |
3/16"
4.8 |
#11
4.9-5.0 |
CBF62 |
0.020-0.125 |
0.5-3.2 |
0.406 |
10.3 |
0.375"
9.5 |
0.080"
2.03 |
1.06"
27 |
438
1950N |
630
2800N |
| CBF63 |
0.126-0.187 |
3.2-4.8 |
0.468 |
11.9 |
| CBF54 |
0.188-0.250 |
4.8-6.4 |
0.631 |
13.5 |
| CBF66 |
0.251-0.375 |
6.4-9.5 |
0.656 |
16.7 |
| CBF68 |
0.376-0.500 |
9.5-12.7 |
0.781 |
19.8 |
| CBF610 |
0.501-0.625 |
12.7-15.9 |
0.906 |
23.0 |
| CBF612 |
0.626-0.750 |
15.9-19.1 |
1.026 |
26.1 |
|
|
| |
|
|
|
