材质
铆体: Copper
钉芯: Stainless Steel |
表面颜色
铆体:
Polished
钉芯:
Polished |
|

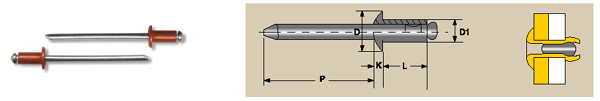

D1
NOM. |
DRILL NO. $HOLE SIZE |
ART.CODE |
GRIP RANGE |
L(MAX) |
D
NOM. |
K
MAX. |
P
MIN. |
SHEAR
LBS |
TENSILE
LBS |
| INCH |
MM |
INCH |
MM |
1/8"
3.2mm |
#30
3.3-3.4 |
CB41 |
0.020-0.062 |
0.5-1.6 |
0.212 |
5.4 |
0.250"
6.4 |
0.040"
1.02 |
1.06"
27 |
157
700N |
180
800N |
| CB42 |
0.063-0.125 |
1.6-3.2 |
0.275 |
7.0 |
| CB43 |
0.126-0.187 |
3.2-4.8 |
0.337 |
8.6 |
| CB44 |
0.188-0.250 |
4.8-6.4 |
0.400 |
10.2 |
| CB45 |
0.251-0.312 |
6.4-7.9 |
0.462 |
11.7 |
| CB46 |
0.313-0.375 |
7.9-9.5 |
0.525 |
13.3 |
| CB48 |
0.376-0.500 |
9.5-12.7 |
0.650 |
16.5 |
5/32"
4.0mm |
#20
4.1-4.2 |
CB52 |
0.020-0.125 |
0.5-3.2 |
0.300 |
7.6 |
0.312"
7.9 |
0.050"
1.27 |
1.06"
27 |
225 1000N |
337 1500N |
| CB53 |
0.126-0.187 |
3.2-4.8 |
0.362 |
9.2 |
| CB54 |
0.188-0.250 |
4.8-6.4 |
0.425 |
10.8 |
| CB56 |
0.251-0.375 |
6.4-9.5 |
0.550 |
14.0 |
| CB58 |
0.376-0.500 |
9.5-12.7 |
0.675 |
17.1 |
| CB510 |
0.501-0.625 |
12.7-15.9 |
0.800 |
20.3 |
3/16"
4.8mm |
#11
4.9-5.0 |
CB62 |
0.020-0.125 |
0.5-3.2 |
0.325 |
8.3 |
0.375"
9.5 |
0.060"
1.52 |
1.06"
27 |
337
1500N |
450
2000N |
| CB63 |
0.126-0.187 |
3.2-4.8 |
0.387 |
9.8 |
| CB64 |
0.188-0.250 |
4.8-6.4 |
0.450 |
11.4 |
| CB66 |
0.251-0.375 |
6.4-9.5 |
0.575 |
14.6 |
| CB68 |
0.376-0.500 |
9.5-12.7 |
0.700 |
17.8 |
| CB610 |
0.501-0.625 |
12.7-15.9 |
0.825 |
21.0 |
| CB612 |
0.626-0.750 |
15.9-19.1 |
0.950 |
24.1 |
| CB614 |
0.751-0.875 |
19.1-22.2 |
1.075 |
27.3 |
| CB616 |
0.876-1.000 |
22.2-25.4 |
1.200 |
30.5 |
| CB618 |
1.001-1.125 |
25.4-28.6 |
1.325 |
33.7 |
|
|
|
